SPK 2 x 4.0mm² double shielded (50041) PVC Speaker cable 雙層屏蔽音箱線 PVC
Flexible Speaker cable for power amplifiers up to 2750 watts. 224 strands of 0.15 mm bare copper wires, fine stranding for best flexibility but still affordable price. Double shielded yet still flexible construction. Easy application to most connectors. PVC strands do keep the cable construction round and stable. Drain wire for ground contact.
LFOC higher grade copper at best standards for best performance

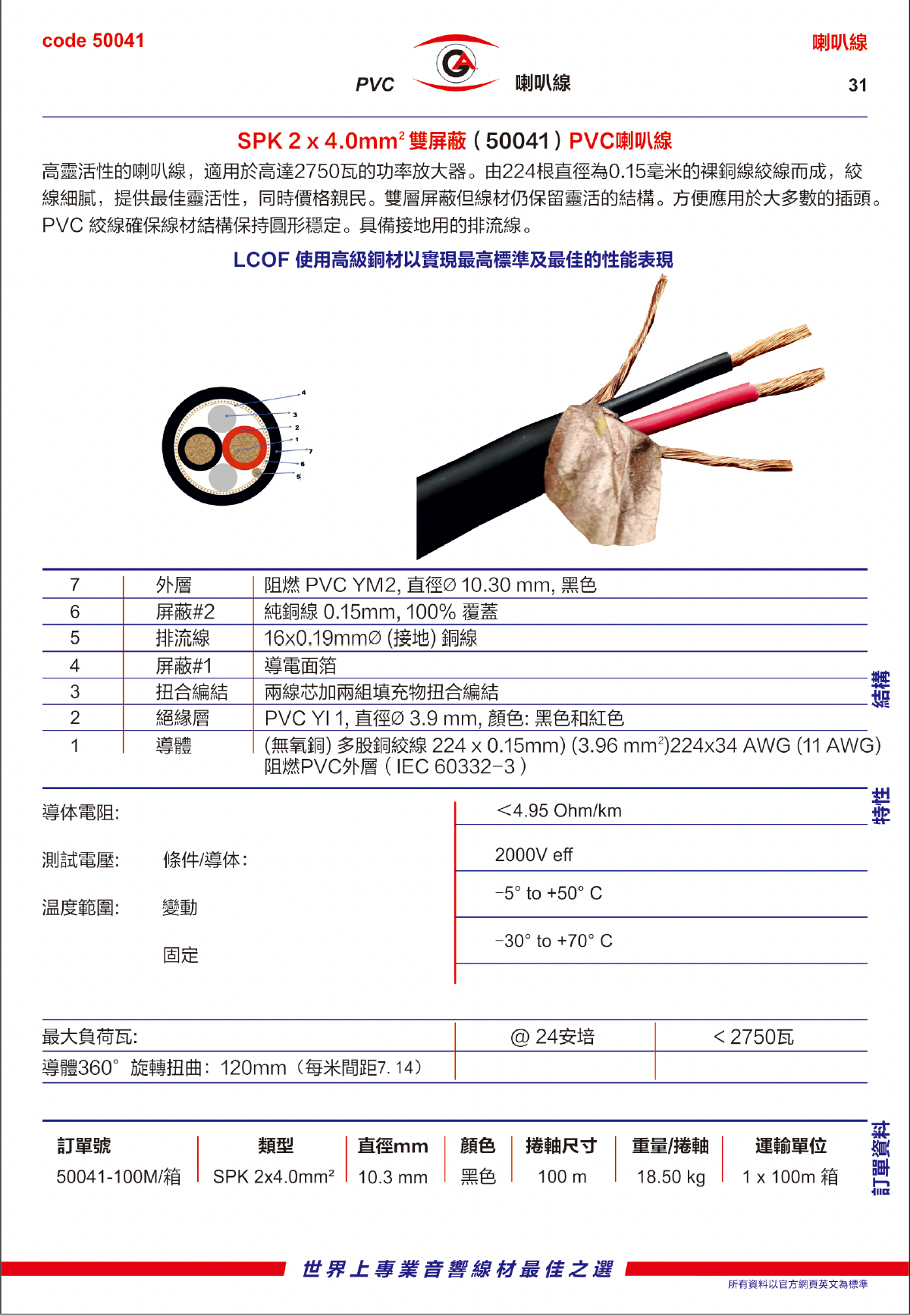

PDF Datasheet
Construction: |
||
| 7 = Jacket: | Flameretarded PVC YM2, Ø 10.30 mm, black | |
| 6 = Shield #2 | Bare copper wires 0.15mm, 100% coverage | |
| 5 = Drain wire | 16x0,19mmØ Cu (Ground) bare copper | |
| 4 = Shield #1 | Conductive Fleece Foil | |
| 3 = Twisting | Two cores and two filler twisted together. Lay Lenght ̴ 120mm | |
| 2 = Insulation: | PVC YI 1, Ø 3.9 mm, Color code black and red | |
| 1 = Conductor: | (OFC) Stranded bare copper wires 224 x0.15mm) (3.96 mm²) 224x34 AWG (11 AWG) | |
| Flameretarded PVC Jacket (IEC 60332-3) | ||
Technical Datas: |
||
| Conductor resistance: | < 4.95 ohm/km | |
| Test voltage: | cond/cond: | 2000 veff |
| Temperature range: | flexi-installed: | -5° to +50° C |
| fix-installed: | -30° to +70° C | |
| Maximum Watts load: | @ current 24.0 Ampere/Line | < 2750 Watt |
| Twist 360° rotation of conductors: 120mm (pitch per meter 7.14) |
Ordering Information:
|
Order No.
|
Type
|
Diameter
|
Colour
|
Spool Size
|
Weight/
Spool |
Shipping
Unit |
| 50041-100 Box | SPK 2x4.0mm² | 10.3 mm | black | 100m | 18.50 kg | 1 x 100m Box |
